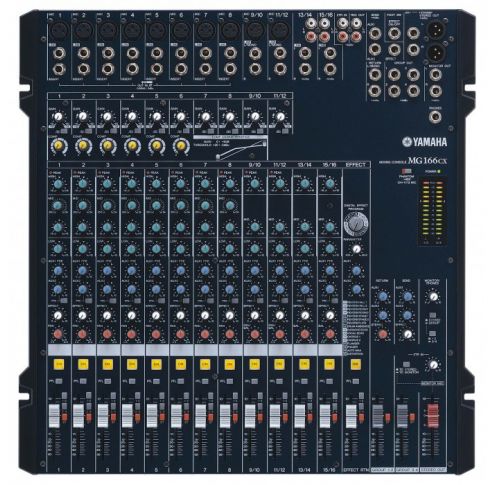

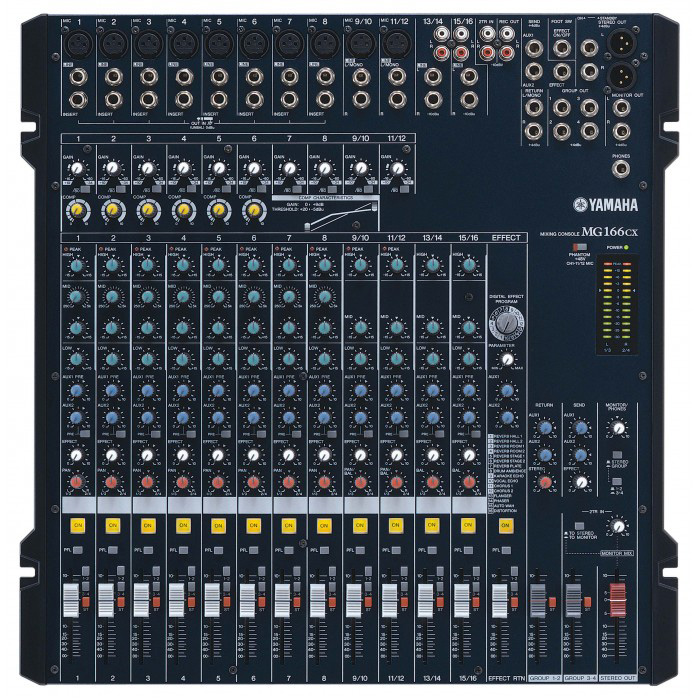

MG 166CX - YAMAHA

Mã sản phẩm: MG 166CX

Nhà sản xuất: YAMAHA
Tình trạng: Còn hàng

Hotline hỗ trợ 24/7: 0903831080

Giá : 0 đ

Đặt hàng ngay

Hãng sản xuất	YAMAHA
Loại	16 - 24 Line
Tần số đáp ứng	20 Hz - 20 kHz
Độ nhạy	128dB
Cổng kết nối	• Mic
Nguồn điện	PA-30: AC 35VCT, 1.4A
Công suất tiêu thụ (W)	35
Trọng lượng (kg)	5.5
Kích thước (mm)	478 x 105 x 496
Xuất xứ	Indonesia

Thông tin thêm về Yamaha MG166CX

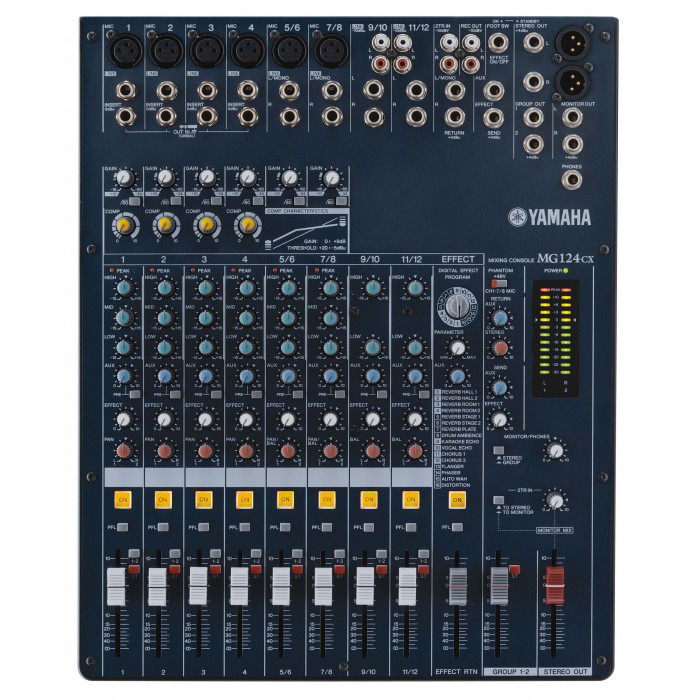

		MG82CX	MG124CX	MG166CX
Total Harmonic Distortion		Less than 0.1 % (THD+N) 20 Hz - 20 kHz @ +14 dBu (ST OUT)
Frequency Response		0, +1, -3 dB 20 Hz - 20 kHz @ +4 dBu (ST OUT)
Hum & Noise ^*1		-128 dBu Equivalent Input Noise/ -100 dBu Residual Output Noise 20 Hz - 20 kHz, Rs = 150 Ω, Input Gain = Maximum	-128 dBu Equivalent Input Noise/ -98 dBu Residual Output Noise 20 Hz - 20 kHz, Rs = 150 Ω, Input Gain = Maximum
INPUT Connectors		MIC: 4, LINE: 2 mono + 4 stereo, CH INSERT: 2, RETURN: 1 stereo, 2TR IN: 1 stereo	MIC: 6, LINE: 4 mono + 4 stereo, CH INSERT: 4, AUX RTN: 1 stereo, 2TR IN: 1	MIC: 10, LINE: 8 mono + 4 stereo, CH INSERT: 8, AUX RTN: 1 stereo, 2TR IN: 1
OUTPUT Connectors		ST: 1, EFFECT SEND: 1, CH INSERT: 2, REC: 1 stereo, MONITOR: 1 stereo, Phone: 1	ST: 2, AUX SEND: 1, EFFECT SEND: 1, CH INSERT: 4, REC: 1 stereo, MONITOR: 1 stereo, GROUP: 2 Phone: 1	ST: 2, AUX SEND: 2, EFFECT SEND: 1, CH INSERT: 8, REC: 1 stereo, MONITOR: 1 stereo, GROUP: 4 Phone: 1
Crosstalk *2		-70 dB @ 1 kHz
Phantom Power		+ 48 V
Input HPF		CH 1-2 and CH 3/4-5/6, 80Hz, 12dB/oct	CH 1-4, CH 5/6-7/8, 80Hz, 12dB/oct	CH 1-8, CH 9/10-11/12, 80Hz, 12dB/oct
CH EQ (MONO) 3 ±15 dB (Max.)*	High	10 k Hz: shelving
	Mid	2.5 k Hz: peaking
	Low	100 Hz: shelving
CH EQ (STEREO) 3 ±15 dB (Max.)*	High	10 k Hz: shelving
	Mid	—
	Low	100 Hz: shelving
Compressor (COMP)		control x 1 (Gain/Threshold/Ratio), CH 1-2	control x 1 (Gain/Threshold/Ratio), CH 1-4	control x 1 (Gain/Threshold/Ratio), CH 1-6
Internal Digital Effect		16 PROGRAM, PARAMETER control Foot Switch (Digital Effect, on/off)
LED Level Meter Pre MONITOR Level		2 x 7 points LED meter (PEAK, +6, +3, 0, -5, -10, -20 dB) PEAK lights if the signal comes within 3 dB of the clipping level.	2 x 12 points LED meter (PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB) PEAK lights if the signal comes within 3 dB of the clipping level.
PEAK Indicator		Red LED turns on when post EQ (ST CH: or post Mic HA) signal reaches -3dB below clipping (17dBu).
USB Audio USB IN/OUT		—	—	—
Power Supply Adapter		PA-10: AC 38VCT, 0.62A, Cable Length = 3.6m	PA-20: AC 35VCT, 0.94A, Cable Length = 3.6m	PA-30: AC 35VCT, 1.4A, Cable Length = 3.6m
Power Consumption		21 W	30 W	35 W
Dimensions (W x H x D)		256.6 mm x 62.2 mm x 302.5 mm	346.2 mm x 86.1 mm x 436.6 mm	478 mm x 105 mm x 496 mm
Net Weight		1.6 kg	3.2 kg	5.5 kg
Options		Microphone Stand Adaptor (BMS-10A), Foot Switch (FC-5)	Foot Switch (FC-5)	Foot Switch (FC-5)
